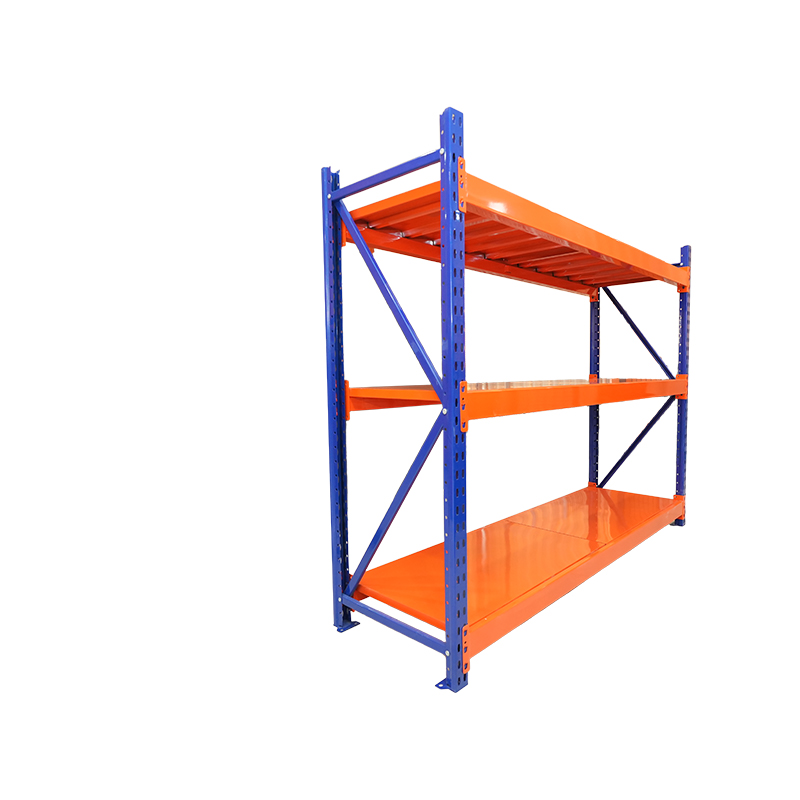

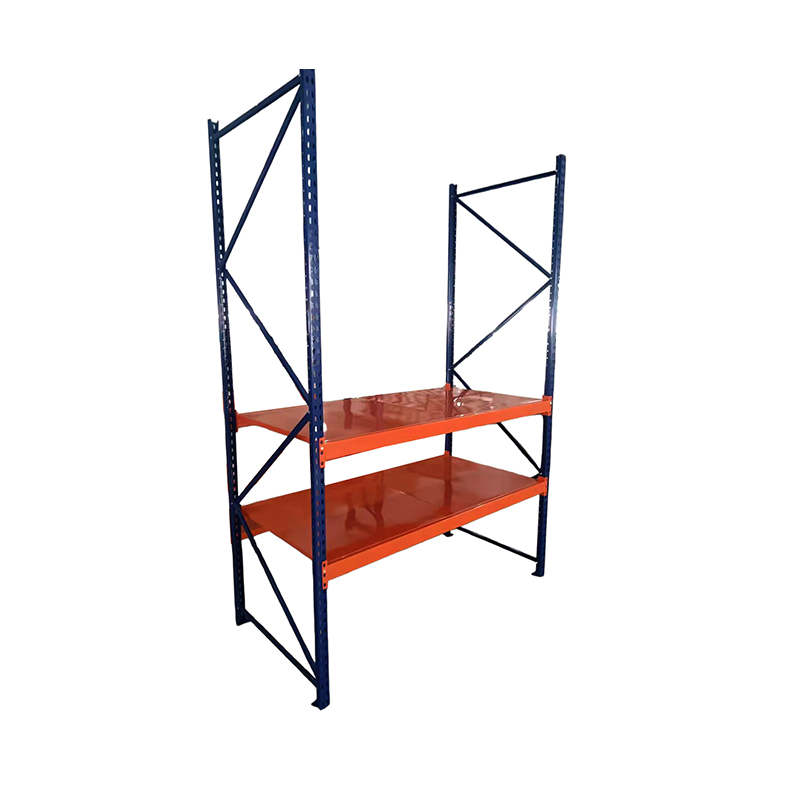

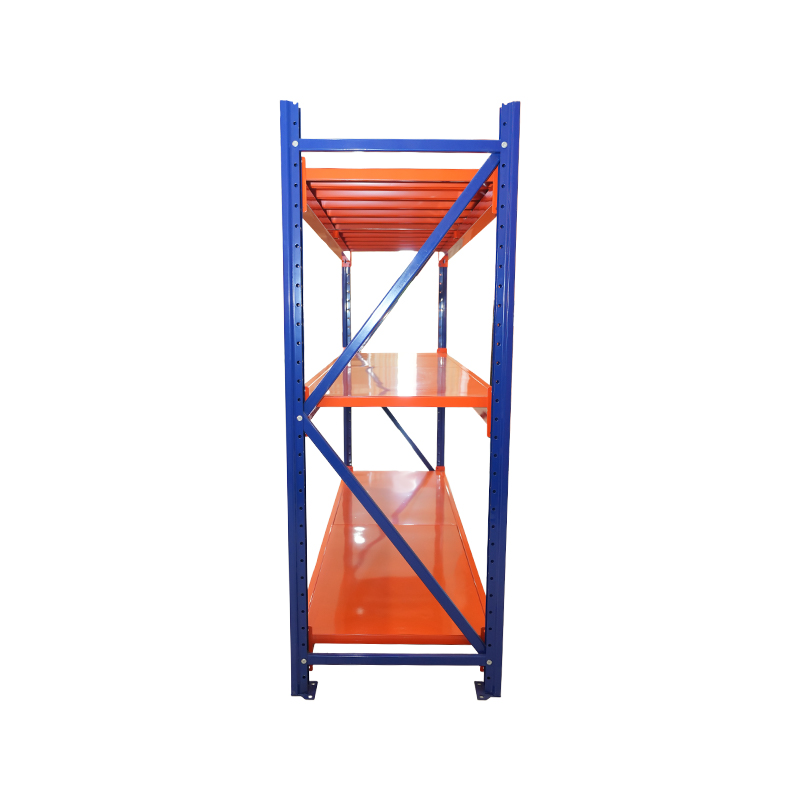

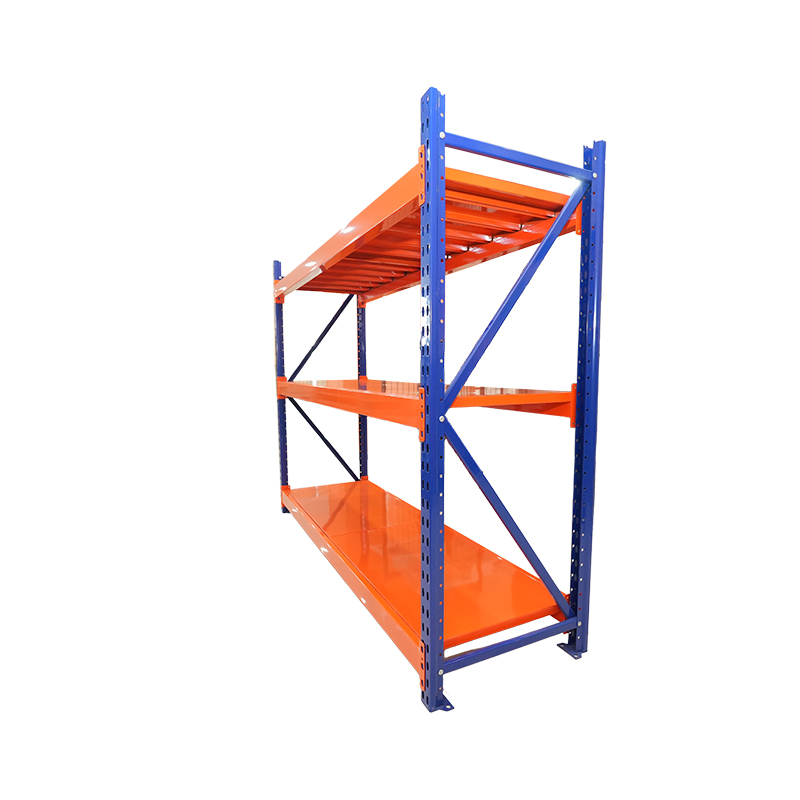

Heavy-Duty Warehouse Shelving: Extra-Thick Uprights, High-Load Capacity, Multi-Tier Storage Rack

Custom made

Core Advantages

    Load capacity – Extra-thick uprights are roll-formed from 1.5 to 2.5 mm cold-rolled steel, with a safe load range per upright of 2000 to 4000 kg. Beams are P-shaped or rectangular tubes, with per-tier load range from 500 to 2000 kg, depending on span.

    Structural stability – Beam-to-upright connections use claw-type locks, with connection points subjected to shear forces rather than bending forces. Upright bases include anchor bolt holes for rigid floor attachment. Under long-term use, frame deflection is controlled within 1/1000 of column height.

    Space utilization – Vertical configuration allows 4 to 6 storage tiers. Aisle widths can be set based on the minimum turning radius of forklifts or pallet jacks, reducing non-storage area as a percentage of total warehouse floor space.

    Installation efficiency – Modular design includes standard beam lengths and pre-punched uprights. Each tier has 8 to 12 bolted connection points. Assembly time for a single rack unit (4 tiers) by two workers ranges from 40 to 60 minutes.

Product Features

    Upright specifications – Roll-formed cold-rolled steel, cross-section 80×60 mm or 100×70 mm, material thickness options of 1.5, 2.0, and 2.5 mm.

    Beam specifications – P-shaped steel or rectangular tube, cross-section options of 60×40, 80×50, and 100×50 mm, material thickness from 1.5 to 2.0 mm.

    Shelf panel options – Steel panels (thickness 0.8 to 1.2 mm), wooden panels (thickness 18 mm), steel grid panels, or direct pallet placement (no panels).

    Surface finish – Electrostatic powder coating, available in gray, blue, orange, or specified RAL colors. For outdoor use, hot-dip galvanizing is required.

    Dimension range – Width from 1500 to 2700 mm, depth from 600 to 1200 mm, height from 2000 to 6000 mm.

    Number of tiers – 3 to 6 tiers, depending on total height customization.

    Assembly method – Beam-to-upright connection via claw-type lock with bolt tightening. Diagonal braces or back tie bars are required between uprights when the height exceeds 3000 mm.

    Floor requirement – Concrete floor, minimum thickness 100 mm, compressive strength minimum 25 MPa. Anchor bolt embedment depth minimum 50 mm.

    Safety accessories – Beam safety clips, column guards, back tie bars, bumper rails (optional).

Application Scenarios

    Storage of steel coils, castings, and paper rolls in manufacturing raw material warehouses.

    Boxed goods and pallet storage in distribution centers.

    Storage of bagged cement, pipes, and sheets in building material warehouses.

    Storage of engine components, tires, and spare parts pallets in automotive parts warehouses.

Frequently Asked Questions and Precautions

Frequently Asked Questions

Q: Does the shelving require floor anchoring?
A: For heights exceeding 2400 mm or per-tier loads exceeding 800 kg, anchor bolts must be used to secure upright bases to the concrete floor. For lower heights and lighter loads, expansion bolts or weighted bases may be used, subject to on-site safety assessment.

Q: Will beam-to-upright connections loosen over time?
A: Claw-type locks with bolted fastening do not loosen under normal load conditions. Re-tighten bolts 30 days after initial use, then inspect every 6 months.

Q: Is this shelving compatible with forklift operation?
A: The design is compatible with pallet forklifts and counterbalance forklifts. The clearance between beam bottom and floor must be set according to fork lifting height. Recommended aisle width is not less than the forklift minimum turning radius plus 200 mm.

Precautions

    Do not exceed the rated load per tier. Distribute loads evenly across the full beam length. Avoid applying concentrated loads at beam midpoints.

    Install column guards on the exterior of aisle-side upright bases to prevent upright deformation from forklift or pallet jack impact.

    When placing racks back-to-back, back tie bars must be installed and secured between the two rack units. Do not omit.

    Do not stack goods above the top beam level on the uppermost tier to prevent falling hazards.

    For liquid container storage, place spill containment trays on shelf panels to prevent liquid leakage from corroding upright bases or floors.

    Check the concrete floor flatness before installation. Height variation shall not exceed 5 mm per meter. Use steel shims for leveling if out of range.
