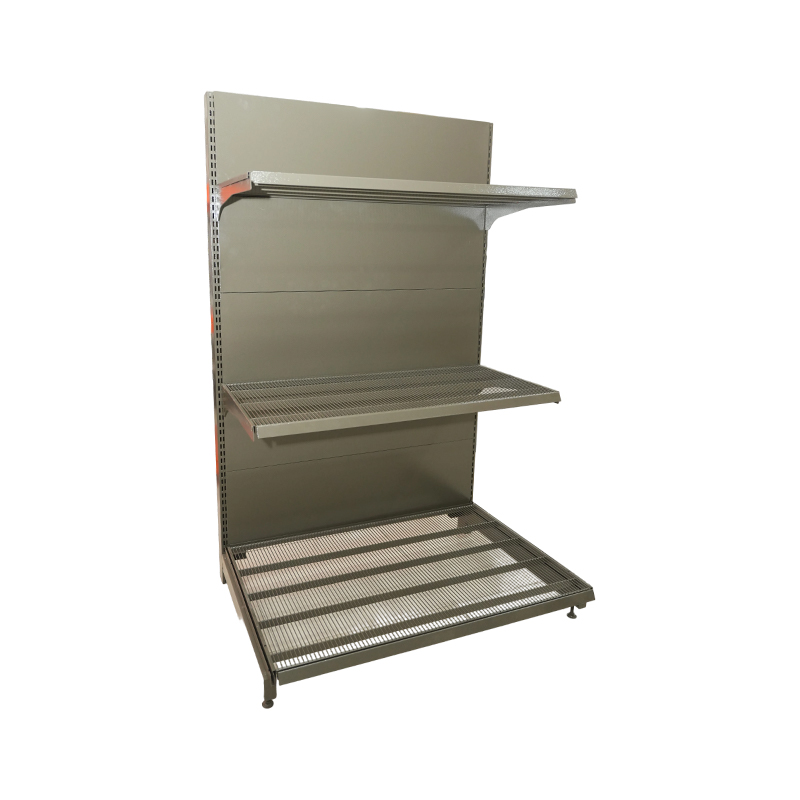

Premium Supermarket Shelving — Extra-Thick Mesh Panel Design (Breathable Storage Model)

custom made

Core Advantages

    Breathability – Mesh openings are evenly distributed across the entire shelf surface, with an airflow pass-through rate of 60% to 75%. Suitable for products requiring air circulation, including fruits, vegetables, bagged dry goods, and baked items.

    Structural thickness – Mesh panel wire diameter ranges from 3.0 to 4.5 mm, exceeding the conventional 1.5 to 2.5 mm range. Panels include reinforced borders to reduce edge deformation over extended use.

    Cleaning convenience – The mesh surface lacks large flat areas. Debris or liquids fall through the openings to lower tiers or the floor, reducing residue accumulation on shelf surfaces. Compressed air or pressure washing is applicable when water-resistant treatment is specified.

    Visual transparency – The mesh structure allows partial visibility of the wall or background behind the shelving, reducing visual congestion in display areas.

Product Features

    Mesh material – Cold-rolled or galvanized steel wire, wire diameter from 3.0 to 4.5 mm.

    Mesh opening – Rectangular openings, available in 25×50 mm or 30×60 mm.

    Border treatment – L-shaped or C-shaped steel border with thickness from 1.5 to 2.0 mm welded around each mesh panel.

    Frame material – Cold-rolled square tube or C-channel steel, upright thickness from 1.2 to 1.5 mm.

    Surface finish – Electrostatic powder coating or hot-dip galvanizing (selected based on environmental requirements).

    Number of tiers – 4 to 6 tiers, depending on total height customization.

    Shelf dimensions – Width from 800 to 1200 mm, depth from 400 to 600 mm.

    Load per tier – 50 to 80 kg, evenly distributed.

    Accessory options – Front label holders, rear backstops, side mesh panels, product dividers.

    Suitable environment – Dry to moderate humidity environments (relative humidity not exceeding 75%). For fresh food sections, galvanized or water-resistant coating must be specified.

Application Scenarios

    Display of bagged or boxed produce in supermarket fruit and vegetable sections.

    Storage of pre-packaged bread and pastries in bakery retail areas.

    Bulk or bagged dry goods (grains, beans, spices) in dry goods stores.

    Snack products requiring breathable conditions (chips, puffed snacks) in convenience stores.

Frequently Asked Questions and Precautions

Frequently Asked Questions

Q: Are mesh panel shelves suitable for small-sized products?
A: The mesh opening is 25×50 mm. Products smaller than 20 mm in diameter may fall through the openings. Such items require mesh panel liners, plastic trays, or fine-mesh backing sheets.

Q: What is the load capacity difference between extra-thick and standard mesh panels?
A: For the same span (1000 mm), mesh panels with a wire diameter of 3.0 to 4.5 mm provide approximately 60% to 80% higher evenly distributed load capacity compared to 1.5 to 2.5 mm panels.

Q: Can this shelving be used in cold storage rooms?
A: Standard powder coating may become brittle at sub-zero temperatures. For cold storage use (temperatures below 0°C), hot-dip galvanized treatment is required, and casters or leveling feet must be specified with low-temperature-resistant materials.

Precautions

    When storing powdered products (flour, powdered sugar), fine particles may fall through mesh openings onto lower tiers. Use fine-mesh liners or separate trays above the mesh panels.

    If pressure washing is used for cleaning, ensure the shelf surfaces have water-resistant treatment (hot-dip galvanized or water-resistant powder coating). After washing, ensure ventilation and drying to prevent water accumulation at joints.

    Do not exceed 80 kg per tier. Exceeding this load may cause permanent sagging deformation at the center of the mesh panel.

    Inspect weld points between mesh panels and frames every 6 months. Replace any panel with cracked welds.

    This shelving is not intended for open liquid containers, such as lidless barrels of liquid or unsealed bottled beverages.
