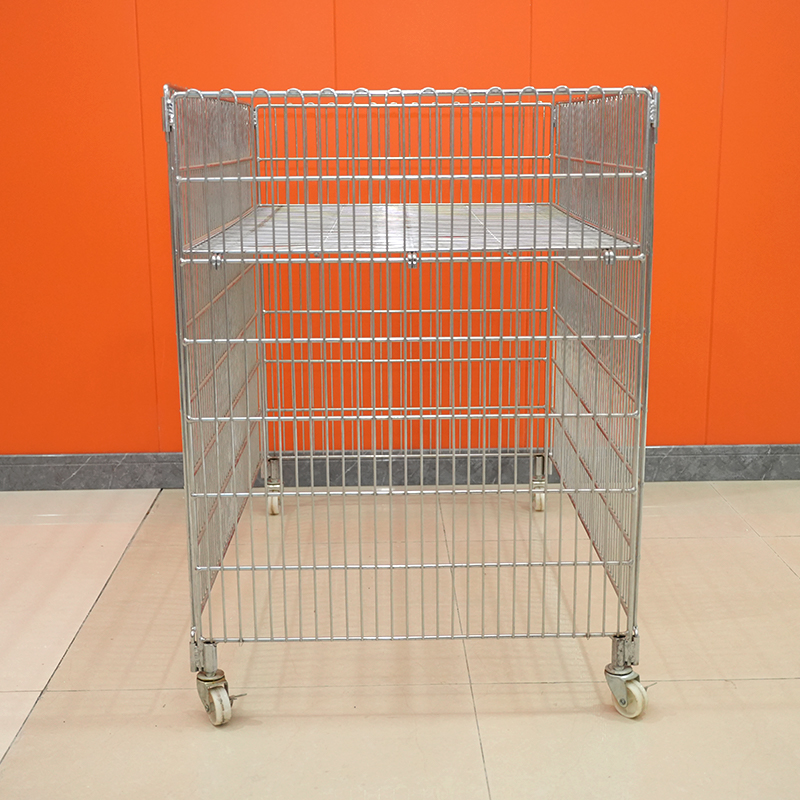

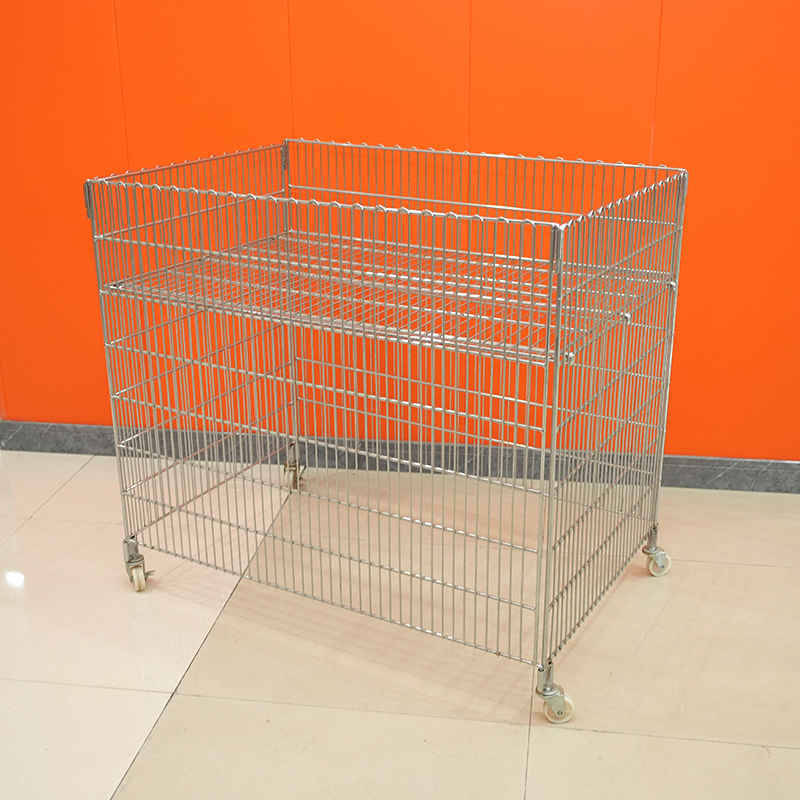

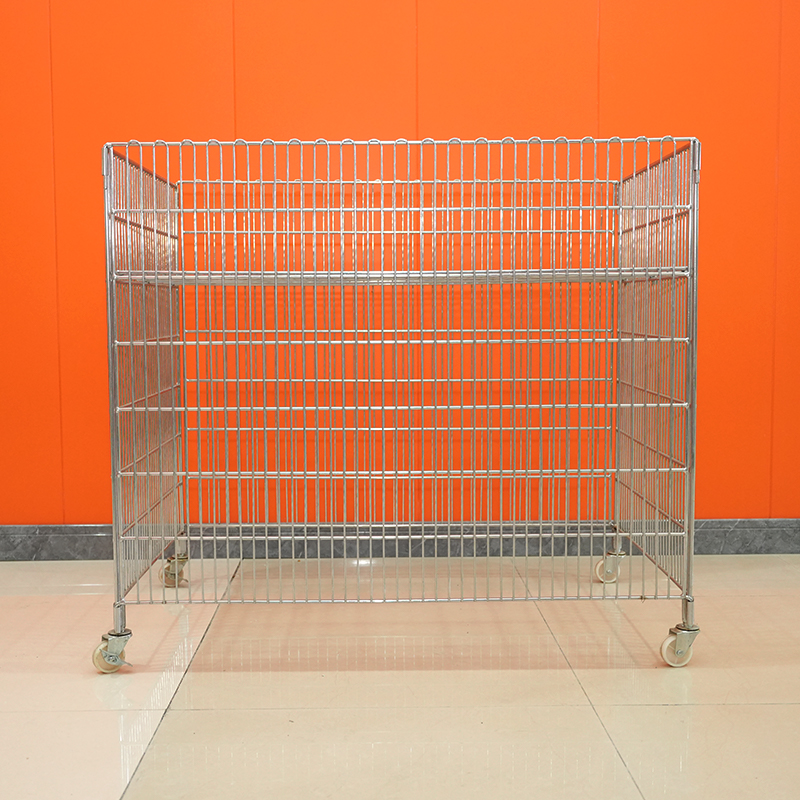

Collapsible Promotional Cage with Wheels — Supermarket Exclusive

L*D*H: 800*800*600mm

Core Advantages

    Collapsible structure – Left, right, rear, and top panels are hinge-connected and can be folded inward onto the base plate. Folding is manual and requires no tools. Collapsed height reduces from 600 mm to 120-200 mm, saving storage space during transport and non-use. To deploy, pull panels upward; hinges self-lock automatically.

    Mobility – Four swivel casters at the base, diameter 100 to 125 mm, wheel surface material: TPR or polyurethane. Two casters feature foot-operated brakes. Double ball bearing caster design provides consistent rolling resistance under both empty and loaded conditions. The cage can be moved flexibly through supermarket aisles, allowing repositioning of temporary promotional displays.

    Dimensions – Length 800 mm, Depth 800 mm, Height 600 mm. Volume: 0.384 cubic meters. Fits standard supermarket aisle widths (900 mm and above), allowing two cages to pass side by side. Cage dimensions occupy one-quarter of a standard pallet (1000×1200 mm), enabling pallet integration.

    Front door – Double doors or a downward-flap door on the front. Door opening width: 700 mm (after subtracting frame width), facilitating customer access. Doors feature latch locks to prevent product spillage during transport or movement. When open, doors can be secured to the cage sides, not occupying aisle space.

Product Features

    Material – Carbon steel wire, diameter options: 4.0, 5.0, 6.0 mm. Frame edges reinforced with thicker wire or flat bar.

    Dimensions (L×D×H) – 800×800×600 mm (deployed).

    Collapsed dimensions (L×D×H) – 800×800×120-200 mm (depending on panel folding method).

    Cage volume – 0.384 cubic meters (deployed).

    Mesh pattern – Vertical wire spacing: 40 to 60 mm. Horizontal wire spacing: 80 to 120 mm.

    Caster specifications – Four swivel casters, diameter 100 or 125 mm. Wheel surface: TPR or polyurethane. Double ball bearings. Brakes: Two casters with foot-operated brakes.

    Hinge structure – Heavy-duty hinges connect panels to the base and to adjacent side panels. Hinge material: carbon steel, thickness 2.0 to 3.0 mm. Hinges feature self-locking mechanisms that engage automatically when panels are deployed.

    Door types – Double doors (center-opening) or downward-flap door. Latch locks included.

    Surface finish – Electrostatic powder coating (black, gray, blue, red) or hot-dip galvanizing.

    Base plate – Stamped steel sheet or welded wire mesh with reinforcement ribs in load-bearing areas. Base ground clearance: 120 to 150 mm.

    Load capacity per cage – 100 to 150 kg under evenly distributed load.

    Stacking capability – When deployed, empty cages can be vertically stacked up to 4 tiers. When collapsed, empty cages can be stacked up to 10 tiers.

    Accessory options – Label holder (mounts on front or top), advertisement slot (front), inter-cage coupling clips, rain cover (for outdoor promotions).

Application Scenarios

    Temporary product displays (beverages, snacks, daily goods) in supermarket promotional areas.

    Centralized display and sales of seasonal products (Mid-Autumn Festival mooncakes, New Year gift boxes).

    Product display and transport in outdoor promotions (plazas, community areas).

    Bulk product display in warehouse-style stores (full-case sales).

    Temporary goods storage and short-distance transport in supermarket back rooms.

Frequently Asked Questions and Precautions

Frequently Asked Questions

Q: How long does folding and deployment take?
A: For a single operator, folding from deployed to collapsed takes approximately 30 to 45 seconds. Deployment from collapsed to locked deployed state takes approximately 45 to 60 seconds. Folding requires sequentially unlocking each panel's locking mechanism. Deployment requires pulling each panel to vertical and confirming hinge lock engagement. Read the instruction manual or watch demonstration videos before operation.

Q: How do the casters perform on tile floors?
A: TPR wheels have a friction coefficient of 0.4 to 0.6 on dry tile or epoxy floors, providing moderate rolling resistance. Four swivel casters allow 360-degree in-place rotation for flexible steering. With a full load of 120 kg, the required single-person pushing force is approximately 4 to 6 kg. On wet floors (after cleaning), reduce speed and exercise steering control.

Q: Can this promotional cage be used for outdoor promotions?
A: Yes, for sheltered outdoor locations (e.g., plaza canopies, community entrances). Standard powder coating fades and chalks under prolonged UV exposure. For frequent outdoor use, specify hot-dip galvanizing. Use rain covers for rain protection, but extended rain exposure will cause metal corrosion. Wipe dry and store indoors after outdoor use.

Precautions

    Do not exceed the rated load of 150 kg per cage. Overloading causes base plate deformation, caster bearing damage, or panel hinge loosening.

    Before moving, ensure product stacking height does not exceed the cage top edge. Over-height products may spill during movement due to shaking.

    When moving with a load, lock both brake casters before loading, then unlock for movement. Avoid moving full loads on slopes exceeding 5 degrees to prevent loss of control.

    Before folding, empty all products from the cage. Folding with products inside causes spillage and hinge damage.

    Inspect hinge lock mechanisms, caster bolts, and weld points monthly. Repair or replace cages with failed hinge locks, loose bolts, or cracked welds.

    Clean with a damp cloth. Cages can be pressure-washed, but avoid directing high-pressure water at hinges and caster bearing seals. After washing, deploy the cage to dry, preventing water accumulation and rust.

    For small products (smaller than the mesh spacing), items may fall through gaps. Use liner bags or fine-mesh liners inside the cage.

    This promotional cage is not intended for liquid containers (open beverage jugs). Liquid leaks will contaminate floors and corrode the cage.
