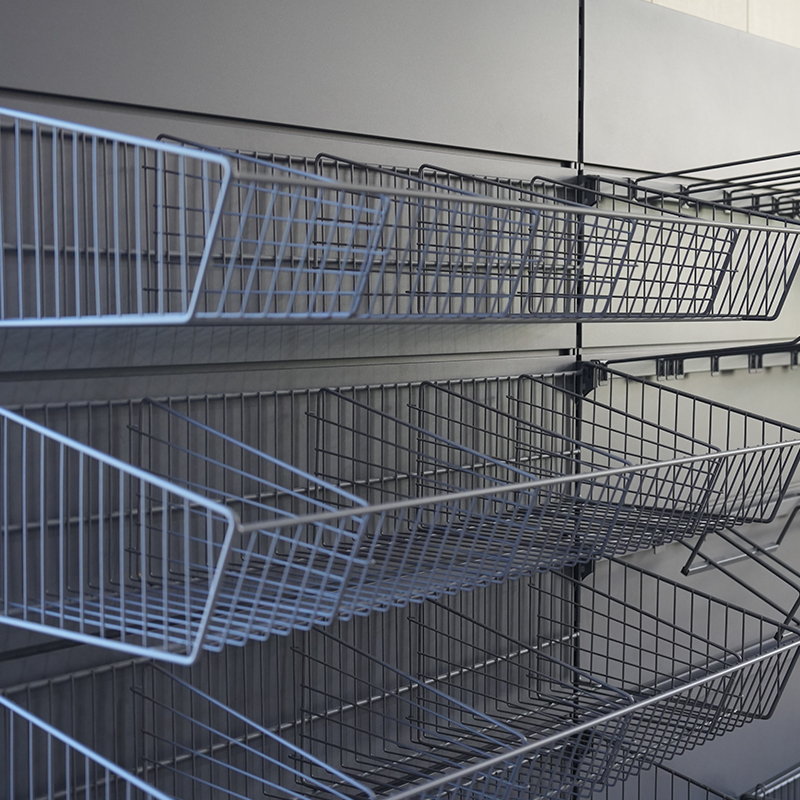

Supermarket Shelf Hanging Basket — Side-Mount Shelf Style

L: 900/1000/1200mm

Core Advantages

    Side space utilization – Basket installs on the side of shelf panels, utilizing lateral gaps between shelving units or between shelving and walls (typically 150 to 300 mm). Does not occupy the product display area above the shelf panels, making use of otherwise idle side space. Suitable for small-pack products, accessories, or promotional items.

    Length specification matching – Three lengths correspond to standard shelf panel widths or upright spacing. 900 mm for 900 mm wide panels or spacing; 1000 mm for 1000 mm wide panels; 1200 mm for 1200 mm wide panels. After installation, basket ends are flush with or inset 5 to 10 mm from the shelf side edge.

    Side hook installation – L-shaped side hooks on the rear basket wall, hook depth 20 to 30 mm, fitting shelf beams (thickness 1.5 to 3.0 mm) or panel edges. To install, align hooks with the beam and hang; the basket secures by its own weight. For removal, lift upward. Multiple hooks (one every 500 mm) ensure stability for long-span baskets.

    Open design – The basket base and sides feature a mesh structure with 50% to 70% open area. Allows easy viewing of contents; dust drains through the bottom. Mesh spacing: 25 to 40 mm, preventing small items from falling through gaps.

Product Features

    Material – Carbon steel wire, diameter options: 3.5, 4.0, 4.5 mm. Frame edges reinforced to 5.0 to 6.0 mm.

    Length options – 900, 1000, 1200 mm (total horizontal length of basket).

    Width options – 150, 200, 250 mm (front-to-back depth of basket, i.e., extension distance from shelf side).

    Height options – 80, 100, 120 mm (vertical depth of basket).

    Mesh pattern – Vertical wire spacing: 25 to 40 mm. Horizontal wire spacing: 50 to 80 mm.

    Surface finish – Electrostatic powder coating (black, white, gray) or hot-dip galvanizing.

    Mounting structure – Side hook type. 2 to 4 L-shaped hooks on the rear wall. Hook depth: 20 to 30 mm. Hook width: 25 to 35 mm. Hook spacing: 400 to 600 mm. Fits beam thickness 1.5 to 3.0 mm or panel edges.

    Base support – Reinforced cross wires or bottom cross-bracing to prevent sagging under load.

    Load capacity – 5 to 15 kg per basket under evenly distributed load, depending on dimensions. Load capacity is evenly distributed along basket length; end sections have slightly lower capacity than the center.

    Accessory options – Label holder (clips to basket front), dividers (insert into basket), anti-slip mat (placed on basket base), end stopper.

Application Scenarios

    Small-pack product storage (seasoning packets, candy, gum) on supermarket shelf sides.

    Promotional giveaways and shopping bags hanging on convenience store shelf exteriors.

    Accessories, instruction manuals, and small tool storage on warehouse shelf sides.

    Plastic wrap, paper towel, and cleaning supply storage on the home storage rack sides.

    Small-format medicine and supplement sample storage on pharmacy shelf sides.

Frequently Asked Questions and Precautions

Frequently Asked Questions

Q: Do side-mount baskets affect access to adjacent shelving aisles?
A: Basket extension width (shelf depth direction) is 150 to 250 mm. Before installation, verify the aisle width between shelving units. Recommended clear aisle width (distance from shelf edge to opposite shelf or wall) is not less than basket extension width plus 600 mm, ensuring normal shopping cart and customer passage. For narrower aisles, select the smaller width option (150 mm).

Q: Can side-hook baskets detach from the beam during product loading/unloading?
A: The basket relies on its own weight and the weight of its contents to keep the hooks tight against the beam's top edge. Hook depth (20 to 30 mm) is typically 3 to 5 times the beam thickness, providing sufficient engagement depth. Avoid pulling downward on the basket front when loading or unloading. For increased security, use upgraded hooks with anti-detach locking tabs (optional), or secure the basket rear wall to uprights with bolts.

Q: Can the basket be installed at any height on the shelf side?
A: The side hook design primarily engages with shelf beams, which are typically located 20 to 50 mm below shelf panels. For installation on panel edges without beams, use panel edge hooks (clamping panel edges with a thickness compatibility of 10 to 25 mm). Installation height can be adjusted based on product access convenience; recommended basket top edge height above floor: 800 to 1200 mm.

Precautions

    Before installation, confirm the basket length matches the shelf side dimensions. Over-length baskets may extend beyond the shelf side, potentially striking adjacent shelving or aisle pedestrians.

    Do not exceed the rated load per basket. Overloading causes permanent base sagging, side hook deformation, or localized beam overloading.

    Inspect side hook contact condition and base weld points monthly. Replace baskets with deformed hooks or cracked welds.

    Distribute loads evenly. Avoid concentrating heavy items at the basket center, which causes localized base sagging and uneven hook loading.

    Clean with a damp cloth. Wire baskets can be pressure-washed; tilt to drain after washing to prevent water accumulation and rust at connection points.

    For small products (smaller than the mesh spacing), items may fall through gaps. Use fine-mesh liners or solid liners on the basket base.

    This basket is not intended for liquid containers (open bottles/jars). Liquid leaks may drip onto the floor, creating a slip hazard.

    Side-mount baskets are auxiliary storage accessories and should not be used as primary load-bearing structures. When baskets are fully loaded, overall shelf stability is not affected, but avoid moving the shelf with loaded baskets in place.
