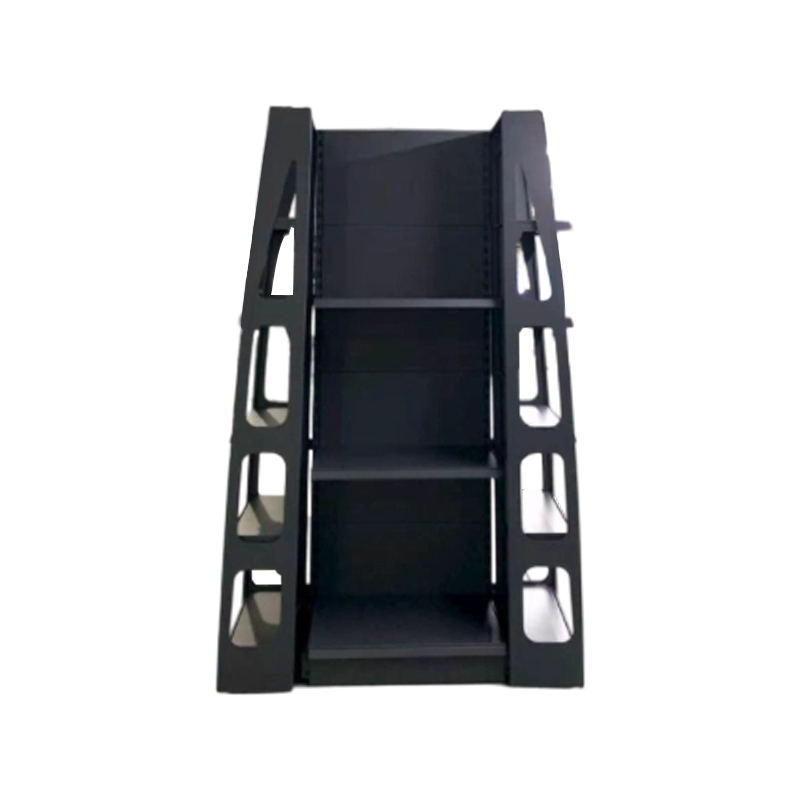

Three-Sided End Rack

Customization available for material configuration, dimensions, and colors.

Core Advantages

Space utilization – The three-sided end structure allows the rack to be placed tightly along walls or bay boundaries. With the front and both sides open, aisle footprint is reduced, increasing the number of storage positions within the same floor area.

Access convenience – With no vertical columns obstructing the front, operators or small handling equipment can access goods directly from three directions, shortening travel paths and improving operational efficiency.

Structural rigidity – Uprights are cold-formed with integrated stiffening ribs. End connections are reinforced with square-tube welded closed frames, resisting lateral thrust and torsional deformation under load.

Coating durability – Electrostatic powder coating provides adhesion meeting cross-cut test requirements, with corrosion and scratch resistance. Color stability is maintained under indoor environmental conditions.

Customization flexibility – Material thickness, overall dimensions, shelf spacing and quantity, and finish color can be adjusted based on item specifications and storage plans, with production made to order.

Product Features

    Dimensions: 900 mm (L) × 400 mm (W) × 1600 mm (H)

    Surface finish: Electrostatic powder coating (color options available)

    Primary materials: Cold-rolled steel (uprights and beams), square tube (end frames and connectors)

    Manufacturing processes: Laser cutting, bending, spot welding, grinding, electrostatic powder coating, etc.

    End configuration: Three-sided closed frame structure (open front and both sides)

    Base structure: Fixed feet (adjustable feet optional)

    Suitable environment: Indoor warehousing, workshop, and retail environments, normal temperature and humidity conditions

    Customization: Overall dimensions, column wall thickness, shelf spacing and number of tiers, powder coating color

Application Scenarios

    Machining workshops – Wall-side categorized storage of small to medium-sized metal parts, tools, fixtures, and components.

    Building material and home furnishing warehouses – Vertical stacking of small pipe fittings, hardware accessories, and decorative materials.

    Retail display areas – Wall-side display and restocking management of small packaged goods in supermarkets, convenience stores, and hardware retailers.

    Logistics sorting zones – Wall-side temporary turnover and management of small parcels, document boxes, and assorted loose goods.

FAQ & Precautions

Frequently Asked Questions

    Does the rack come with adjustable feet?

    Fixed feet are provided as standard. If the floor is slightly uneven, adjustable leveling feet (20–50 mm compensation range) can be selected as an option during customization.

    What is the maximum load capacity per shelf level?

    Load capacity depends on column cross-section dimensions, material thickness, and beam span. Under the standard 900 mm length configuration, each tier supports 50–80 kg under uniformly distributed load. It is recommended to provide unit item weight and total storage quantity during customization for manufacturer load calculation.

    Does the three-sided end structure obstruct forklift operation?

    This size specification is primarily designed for manual handling or small equipment operation. The end frames are positioned at the two ends of the rack, with no vertical columns on the front or sides, so operating space is not restricted by the end frame structure.

Precautions

    During installation, ensure all feet make solid contact with the floor and verify the rack's verticality with a spirit level to prevent structural deformation or localized overloading caused by uneven floors.

    When storing items, distribute the weight evenly across each beam level to avoid concentrated loads at the center of a single beam.

    Before relocating the rack, unload all items and lift the rack off the ground to prevent foot wear.

    If the coating becomes scratched or chipped, apply rust-preventive treatment promptly to prevent substrate oxidation and corrosion in humid environments.
