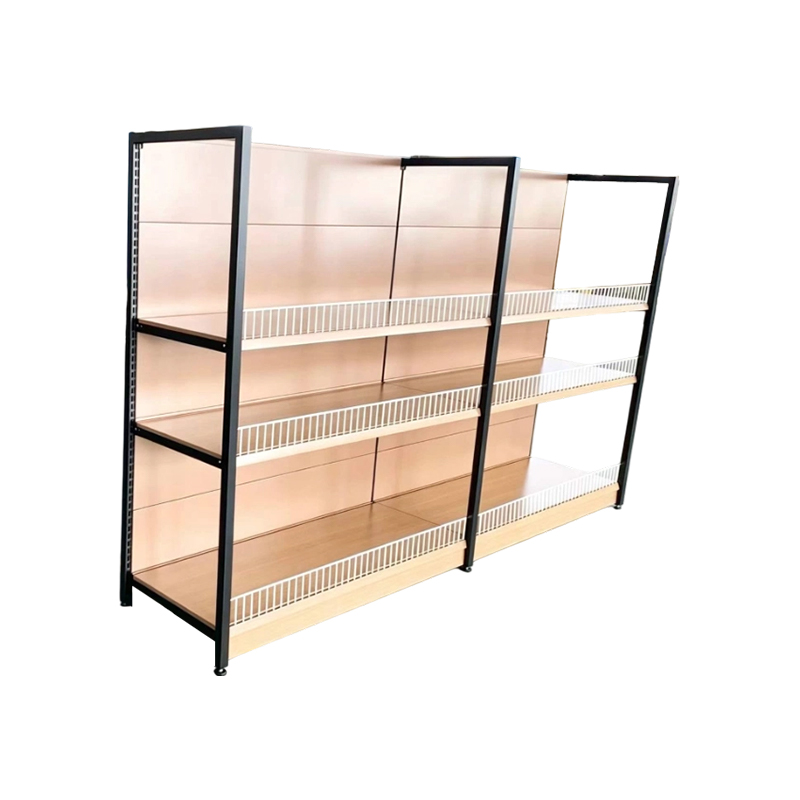

Four-Post Single-Sided Rack

Customization available for material configuration, dimensions, and colors.

Core Advantages

Structural stability – Four upright posts evenly distribute the load, forming a stable frame with beams and bottom cross braces that resist lateral thrust and torsional deformation under load, suitable for heavier materials.

Space utilization – The single-sided open design allows the rack to be placed tightly along walls or partitions, reducing aisle footprint and increasing the number of wall-side storage positions within the same floor area.

Access convenience – With a single-sided open design and no vertical columns obstructing the front, operators can access goods directly from the front, shortening picking paths and improving operational efficiency.

Floor adaptability – Leveling feet can be optionally equipped to compensate for minor unevenness on concrete, epoxy, or hardened floors.

Coating durability – Electrostatic powder coating provides adhesion meeting cross-cut test requirements, with corrosion and scratch resistance. Color stability is maintained under indoor environmental conditions.

Customization flexibility – Material thickness, overall dimensions, shelf spacing and quantity, and finish color can be adjusted based on item specifications and storage plans, with production made to order.

Product Features

    Dimensions: 1200 mm (L) × 660 mm (W) × 2200 mm (H)

    Surface finish: Electrostatic powder coating (color options available)

    Primary materials: Cold-rolled steel (uprights and shelves), square tube (beams and connectors)

    Manufacturing processes: Laser cutting, bending, spot welding, grinding, electrostatic powder coating, etc.

    Configuration: Four-post single-sided structure (shelves on one side)

    Base structure: Fixed feet (adjustable leveling feet optional)

    Suitable environment: Indoor warehousing and retail environments, normal temperature and humidity conditions

    Customization: Overall dimensions, column wall thickness, number and spacing of shelves, powder coating color

Application Scenarios

    Industrial warehousing – Wall-side categorized storage of medium-sized components, case-packed materials, and hardware tools.

    Supermarkets and retail stores – Wall-side display and restocking management of daily necessities, small appliances, and packaged food items.

    Auto parts centers – Fixed-position storage of tires, wheels, oils, and other medium-sized automotive components.

    Wholesale outlets – Wall-side display and bulk storage of small to medium-sized merchandise.

FAQ & Precautions

Frequently Asked Questions

    What are the advantages of a four-post structure compared to a two-post structure?

    The four-post structure evenly distributes the load across four uprights, providing higher load capacity and resistance to lateral impact under the same material thickness, making it suitable for medium to heavier materials.

    What is the maximum load capacity per shelf level?

    Load capacity depends on column cross-section dimensions, material thickness, and beam span. Under the standard 1200 mm length configuration, each tier supports 100–150 kg under uniformly distributed load. It is recommended to provide unit item weight and total storage quantity during customization for manufacturer load calculation.

    Does the rack come with adjustable leveling feet?

    Fixed feet are provided as standard. If the floor is slightly uneven, adjustable leveling feet (20–50 mm compensation range) can be selected as an option during customization.

    Do the adjustable feet require maintenance after long-term use?

    If adjustable leveling feet are selected, it is recommended to inspect the foot threads and locking nuts every 6–12 months. If the rack is to be relocated, raise the feet off the ground before moving, and re-level after repositioning.

Precautions

    During installation, ensure all feet make solid contact with the floor and verify the rack's verticality with a spirit level to prevent structural deformation or localized overloading caused by uneven floors.

    When storing items, distribute the weight evenly across each beam level to avoid concentrated loads at the center of a single beam.

    Before relocating the rack, unload all items and lift the rack off the ground to prevent foot wear.

    If the coating becomes scratched or chipped, apply rust-preventive treatment promptly to prevent substrate oxidation and corrosion in humid environments.
