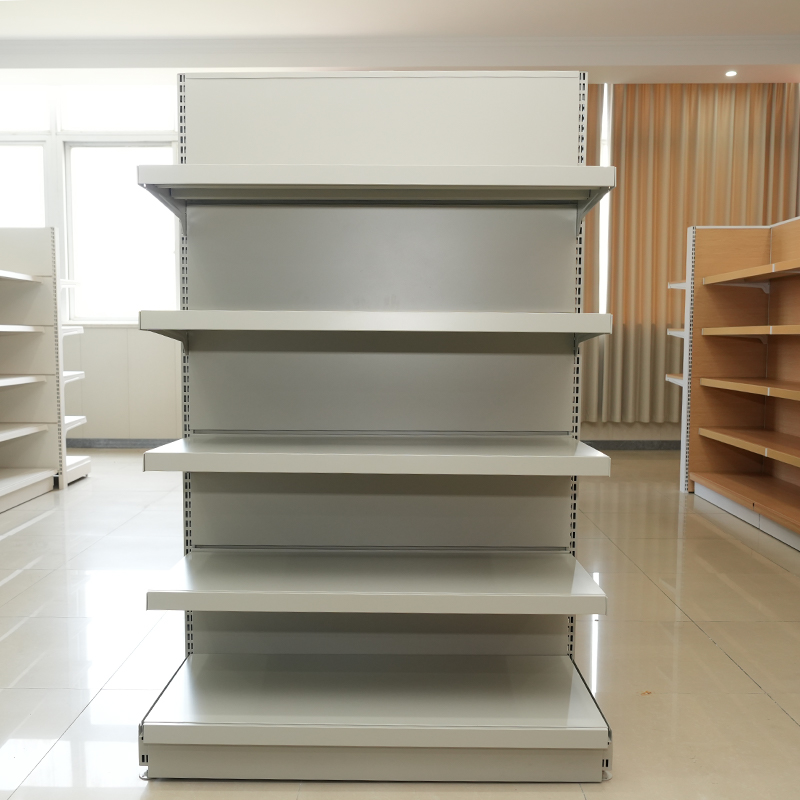

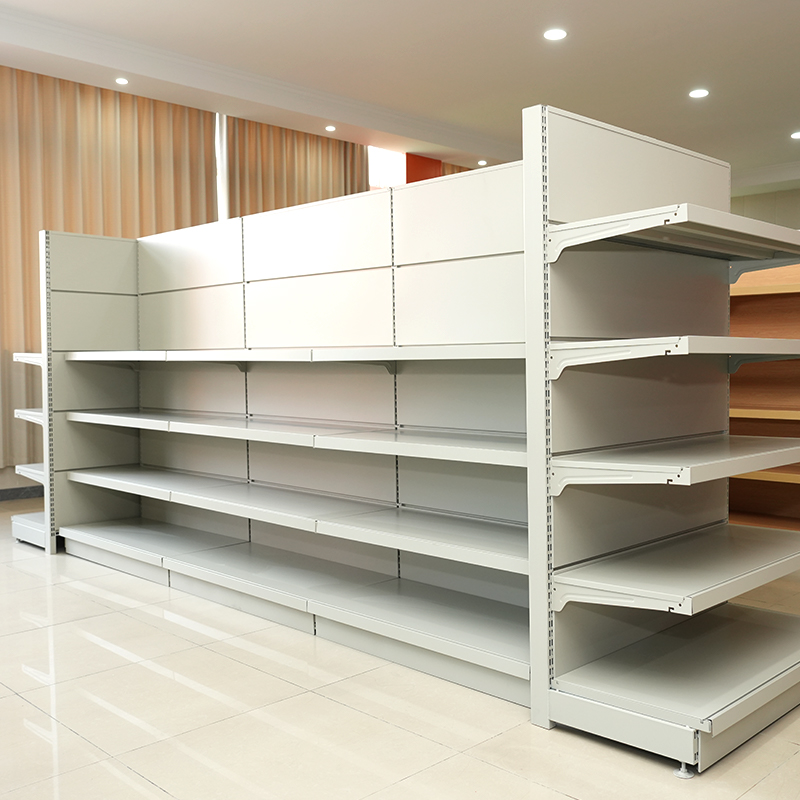

Double-sided supermarket shelves with thickened perforated back panels; convenience store island display racks

Core Advantages

    Structural design: Symmetrical double‑sided frame welded from square tubes and cold‑rolled steel. Thickened perforated back panels connect to uprights at multiple points, increasing torsional rigidity.

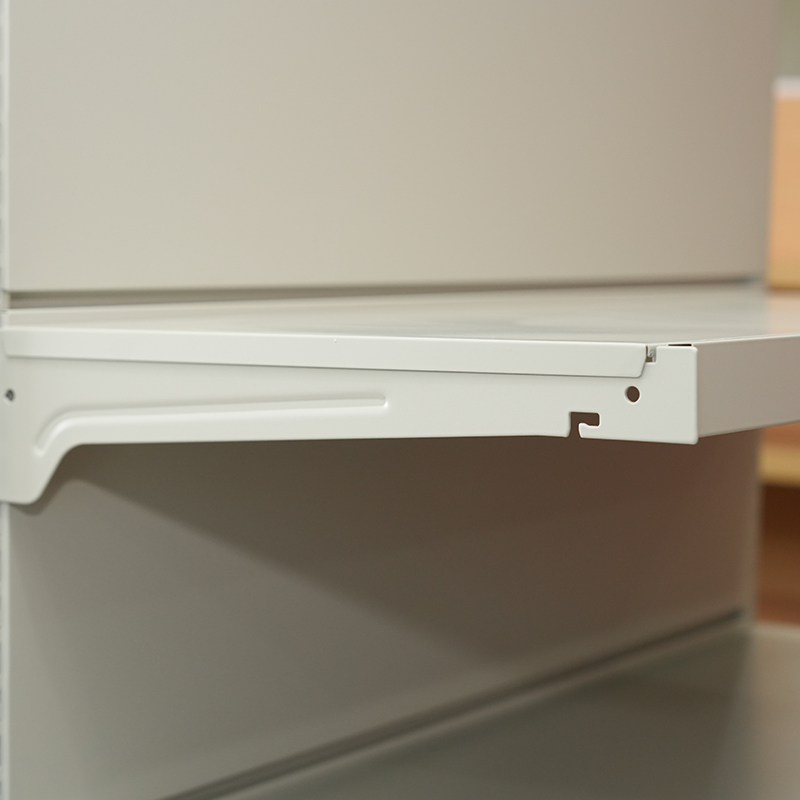

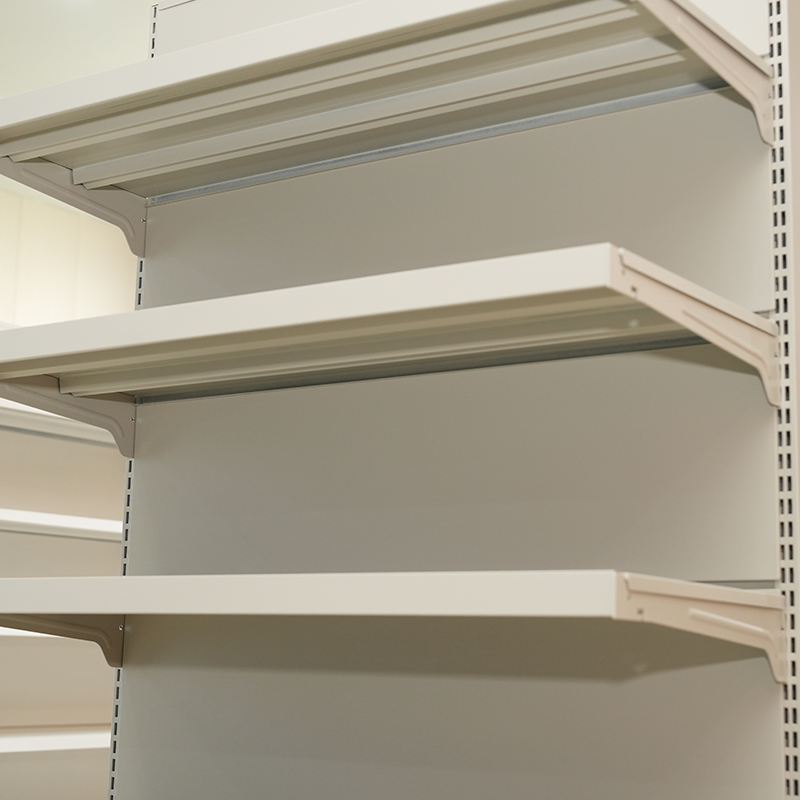

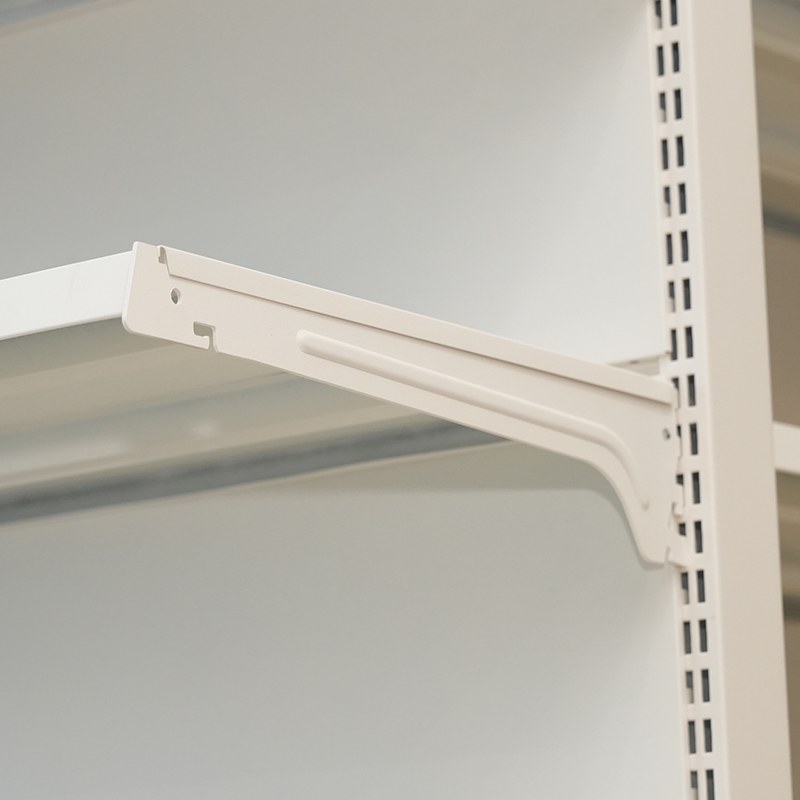

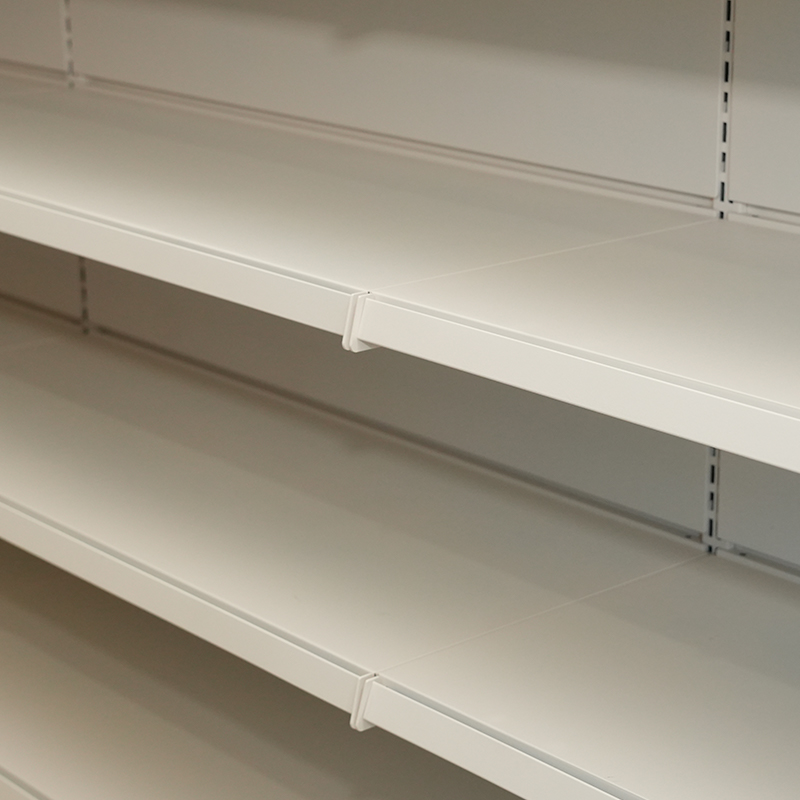

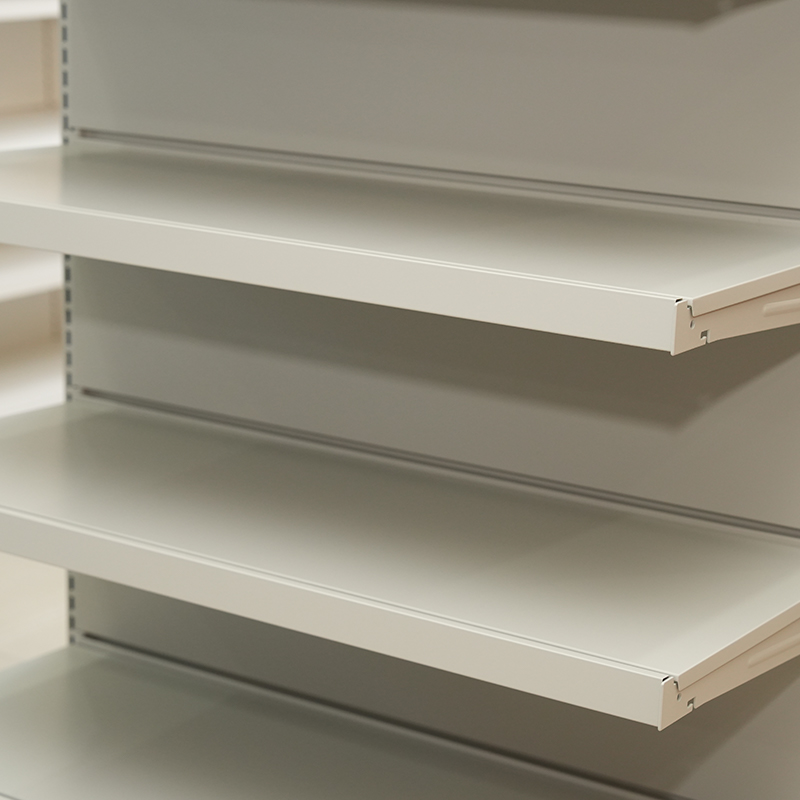

    Load capacity: Shelves are made from thickened cold‑rolled steel with bottom stiffeners. Shelf brackets lock into uprights via clips. Per‑shelf capacity meets the requirements of heavier items such as cooking oil, beverages, and bottled water.

    Production consistency: Components are batch‑processed using automated laser cutting, CNC bending, and robotic spot welding. Dimensional tolerances are maintained within industry standards, ensuring consistency across bulk orders.

    Installation efficiency: Modular components use clip‑type connections requiring no tools for shelf and back panel assembly. Two people can assemble one unit within 30 minutes, reducing on‑site labor costs.

    Accessory compatibility: The hole size and spacing of the perforated back panels accommodate standard hooks, shelf brackets, and price tag strips, enabling flat, hanging, and promotional displays.

    Customization: Overall dimensions, number and spacing of shelves, back panel thickness and hole pattern, and color can be adjusted per order.

Product Features

    Dimensions: 2900 mm (L) × 1000 mm (W) × 2400 mm (H)

    Surface finish: Powder coating (color options available)

    Primary materials: Cold-rolled steel, square tube

    Manufacturing processes: Laser cutting, CNC bending, robotic spot welding, grinding, powder coating

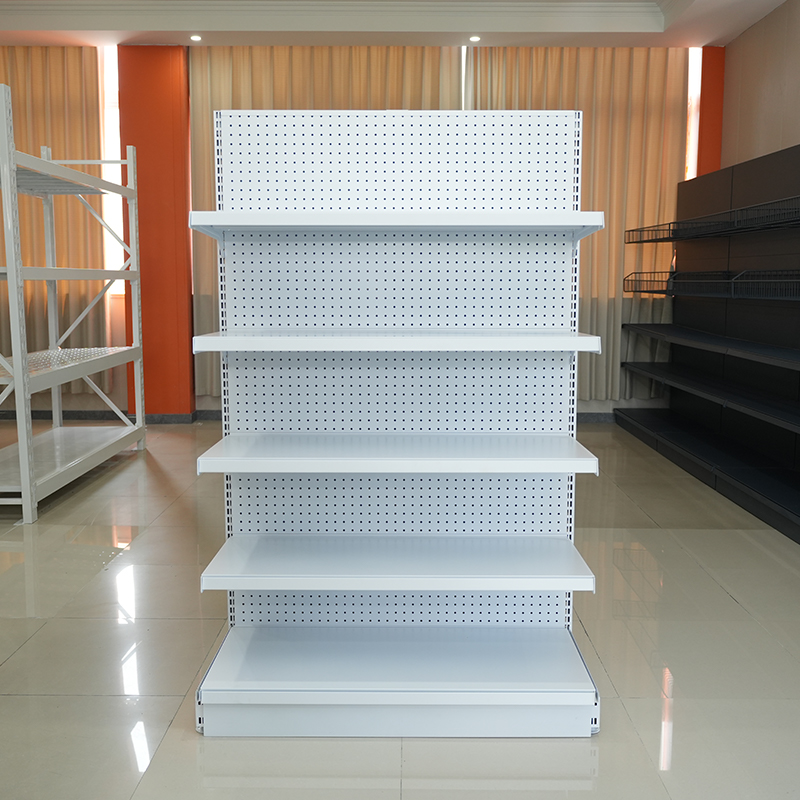

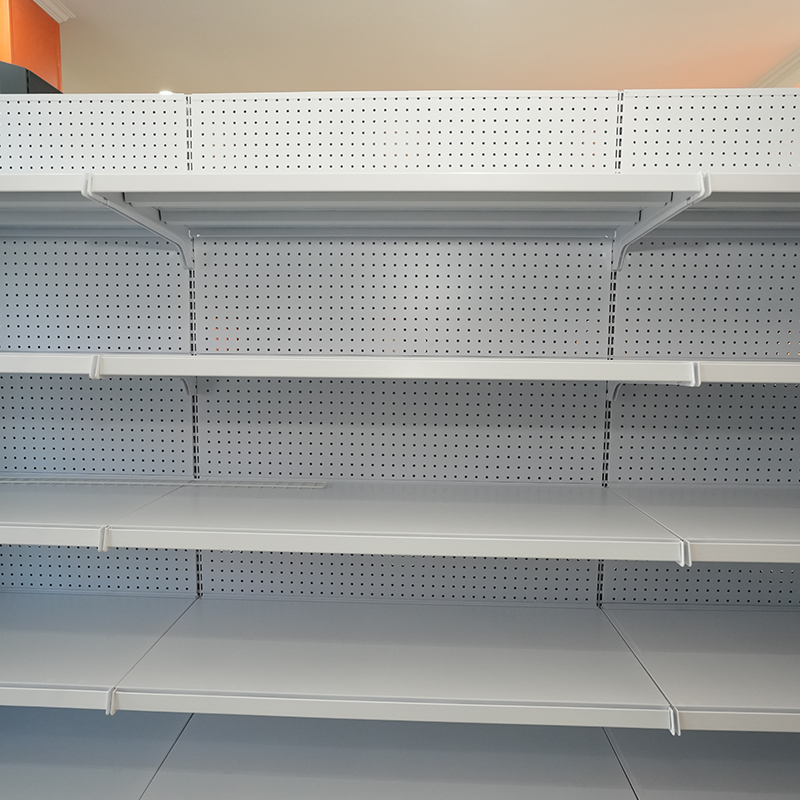

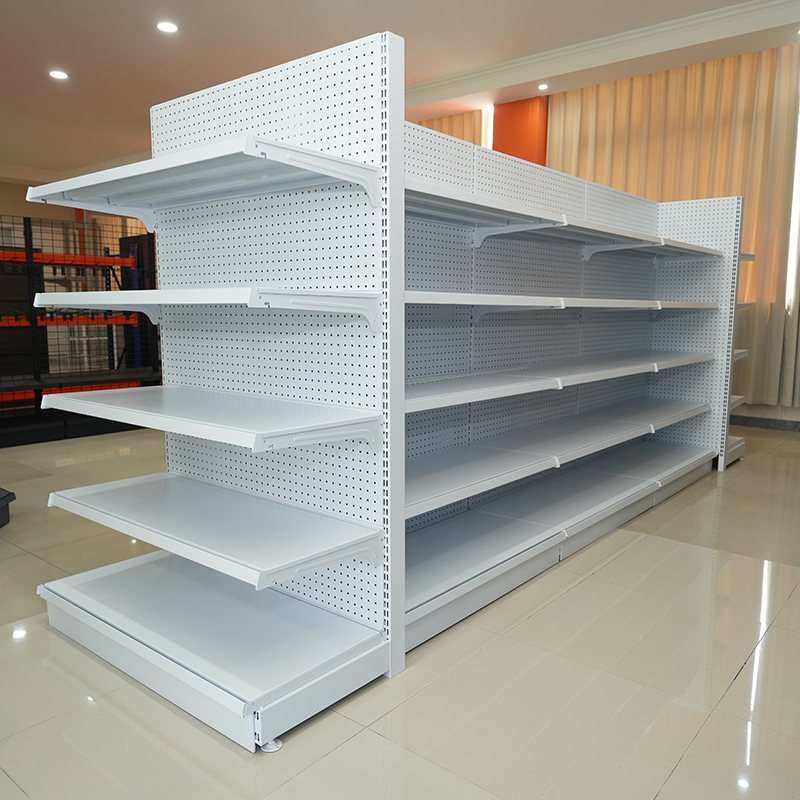

    Back panel type: Thickened perforated sheet metal (hole size and pitch standard or customizable)

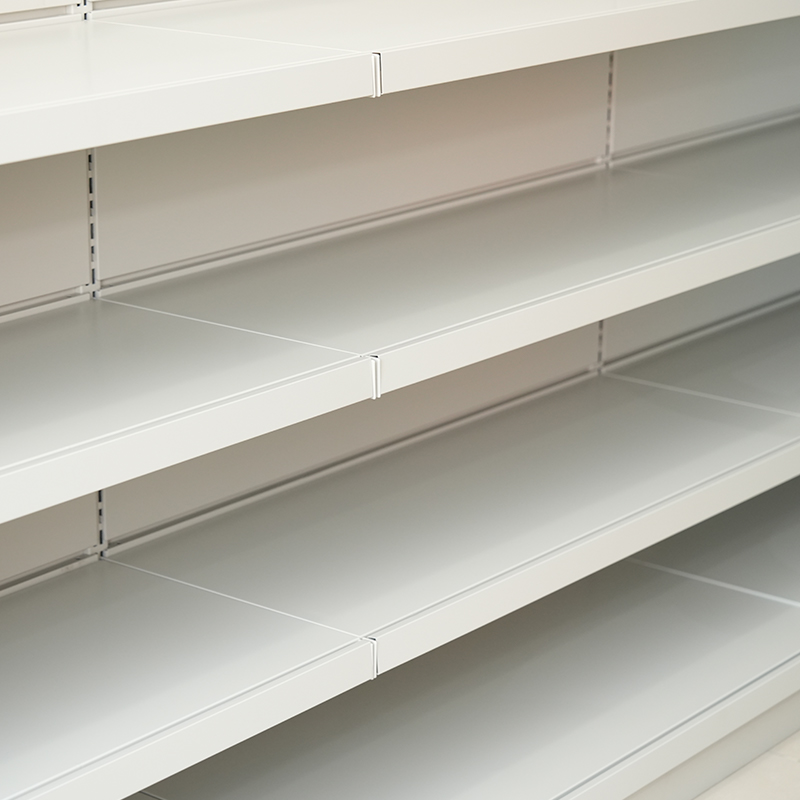

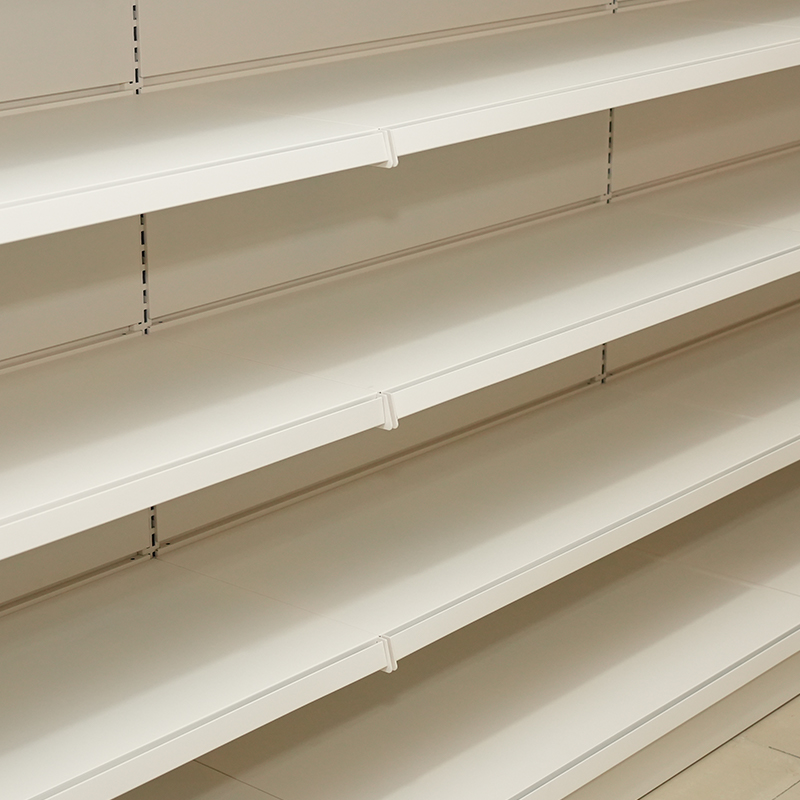

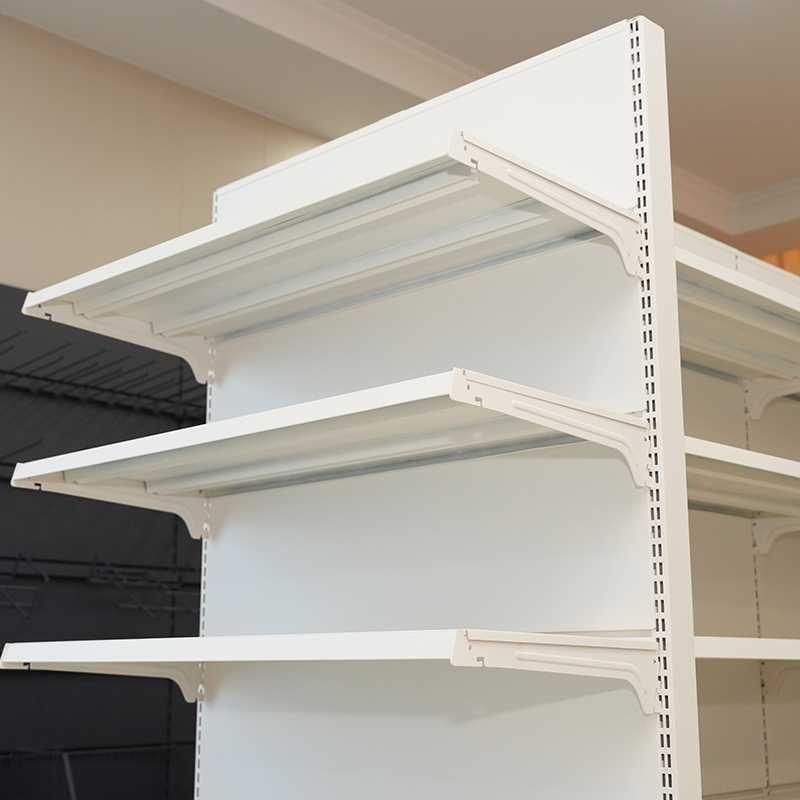

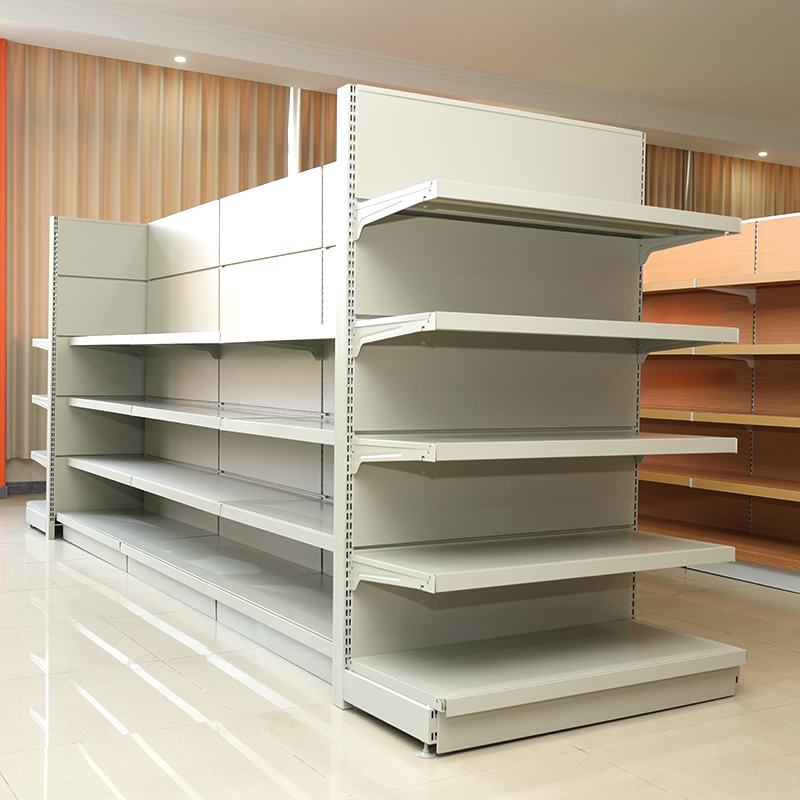

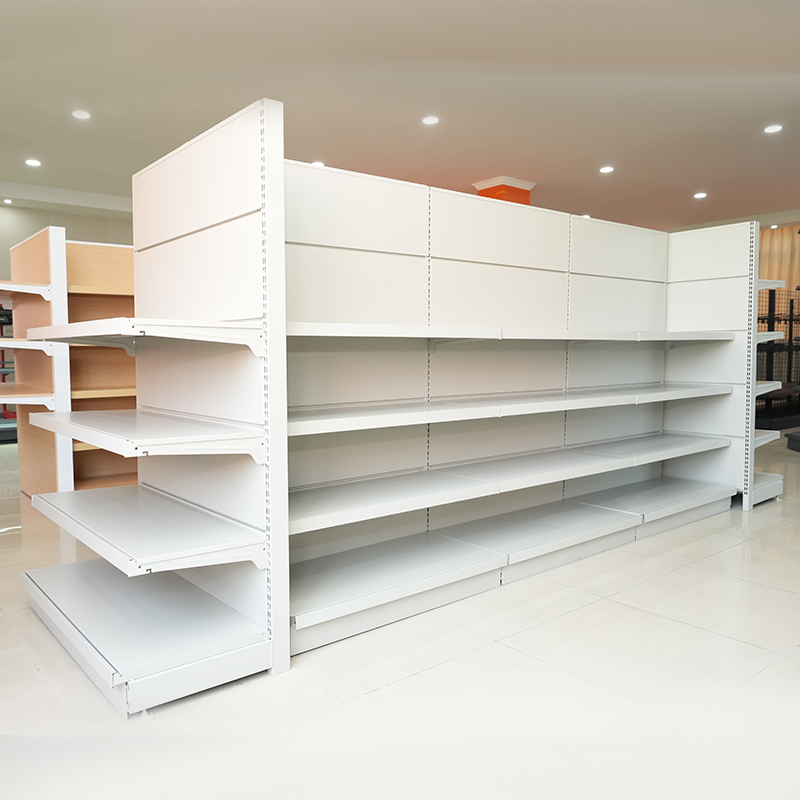

    Configuration: Double-sided display, multiple adjustable shelf tiers

    Assembly method: Clip‑type connections (no tools required for shelves and back panels)

    Accessory compatibility: Standard hooks, shelf brackets, end caps, price tag strips

    Customization options: Overall dimensions, number of tiers, shelf spacing, back panel thickness, hole pattern, and color

Application Scenarios

    Supermarket center aisles – double‑sided display of snacks, beverages, condiments, canned goods

    Convenience store main aisles – allowing customer access from both sides for higher convenience

    Premium and lifestyle supermarkets – perforated back panels with hooks for small packaged specialty items

    Promotional zones – combined with end caps or temporary displays for limited‑time offers

FAQ & Precautions

Frequently Asked Questions

    What is the thickness of the perforated back panels?
    Standard back panels are made of thickened cold‑rolled steel (exact gauge available upon request, typically 0.8mm‑1.2mm), compared to conventional back panels (0.5mm‑0.7mm), providing improved resistance to deformation.

    What is the load capacity per shelf?
    Capacity depends on shelf thickness, stiffener count, and span (2900mm). Under typical thickened configurations with solid panels, each shelf supports 100‑150kg under uniform distribution. Request load test reports from the manufacturer.

    Must the shelf heights be the same on both sides?
    No. Shelf brackets on each side are independently adjustable, allowing different heights on the two sides to accommodate various product sizes. However, the overall center of gravity should be considered.

    Is it suitable for humid environments?
    The powder coating provides moderate corrosion resistance. Long‑term high humidity or direct water splash may cause rust under the coating. For such environments, galvanized or stainless steel versions are recommended.

Precautions

    Ensure the floor is level during installation. All adjustable feet must contact the floor and be locked to prevent rocking.

    For double‑sided units, maintain symmetrical loading on both sides as much as possible to avoid tilting due to uneven weight distribution.

    When installing hooks into the perforated back panels, ensure the hook is fully inserted into the hole and rotated to lock into place.

    Periodically inspect clip‑type connections for loosening, especially after extended use or frequent shelf adjustments.

    Avoid scratching the powder‑coated surface with sharp objects. Clean with a soft cloth and mild detergent. Do not use strong acidic/alkaline solvents.
